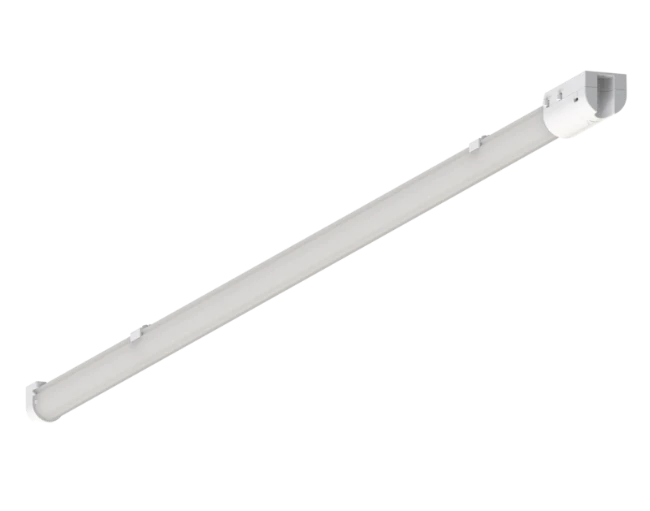

LEDClio-Lin-E L12-16/25W-830/840

Electrical data

Voltage type	AC/DC
Nominal voltage	220|240 V
Max. number of luminaires per miniature circuit breaker B16 (MCB)	13
Max. number of luminaires per miniature circuit breaker C16 (MCB)	23
Max. system power	25 W
Power factor	0.9
Frequency	50|60 Hz
Surge protection	1 kV
With sensor	No
Max. inrush current	14 A
Inrush time	225
Max. number of luminaires per miniature circuit breaker C10 (MCB)	14
Max. number of luminaires per miniature circuit breaker C13 (MCB)	18
Including emergency lighting	No
Nominal voltage DC	176|264 V

Photometrical data

Colour temperature	3000|4000 K
Equivalent to	TL 1x58W
Colour consistency (SDCM)	5
Colour rendering index (CRI)	> 80

Light technical data

Beam angle	145°

Lifespan

Lifetime (L70)	70000 h
Lifetime (L80)	50000 h
On-/Off-cycles	25000

Capabilities

Sensor technology	No sensor
Sensor type	No sensor
Dimmability	On-Off
With sensor	No

Certificates and standards

Protection class according to IEC 61140	II
Degree of protection (IP)	IP20
Glow wire test	650°C

With control gear	Yes
Type of control gear	LED operating device current-controlled
Driver failure rate (at 5,000 hrs)	10%
Input current	0.112 A
Wirethrough	No

Housing colour	White
Finishing	White RAL9003
Optical material	Polycarbonate
Cover material	Polycarbonate
Lens material	Polycarbonate
Pressure valve	No
Coastal proof	No

Length	1185 mm
Width	35 mm
Height/depth	34 mm

Operating temperature	-25|45°C
Application temperature	25°C
Storage environment	-20|60°C
