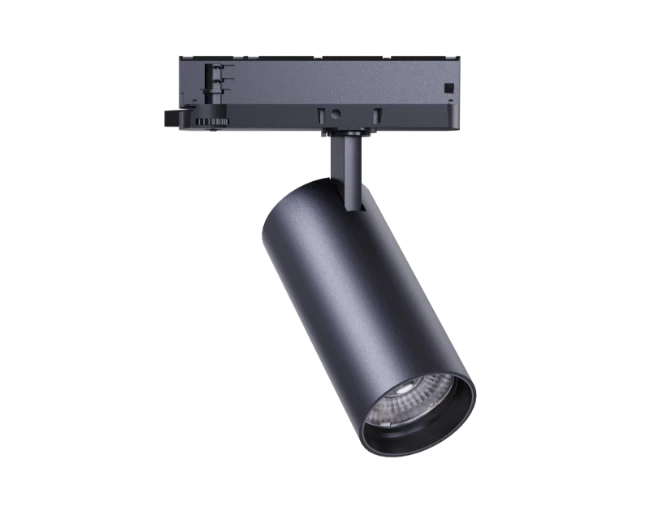

LEDSpot3C-C-P2 20W-940-36D-BL

Electrical data

Voltage type	AC/DC
Max. system power	20 W
Max. number of luminaires per miniature circuit breaker B16 (MCB)	53
Max. number of luminaires per miniature circuit breaker C16 (MCB)	84
Nominal voltage	220|240 V
Power factor	0.9
Max. inrush current	25 A
Inrush time	80
Displacement factor (DF)	≥ 0.9
Max. number of luminaires per miniature circuit breaker C10 (MCB)	52
Max. number of luminaires per miniature circuit breaker C13 (MCB)	68
Nominal voltage DC	180|280 V
Frequency	50|60 Hz

Photometrical data

Colour temperature	4000 K
Equivalent to	HID 35W
Colour consistency (SDCM)	4
Colour rendering index (CRI)	> 90
R9	50
TM-30-Rf	97
TM-30-Rg	91

Light technical data

Beam angle	36°

Lifespan

Lifetime (L70)	70000 h
Lifetime (L80)	50000 h
On-/Off-cycles	100000

Capabilities

Dimmability	On-Off

Certificates and standards

Protection class according to IEC 61140	II
Impact strength	IK03
Glow wire test	650°C
Risk group (EN 62471)	RG1

Type of control gear	LED operating device current-controlled
With control gear	Yes
Driver failure rate (at 5,000 hrs)	1%

Housing colour	Black
Reflector	High-gloss
Optical material	Polycarbonate
Cover material	Polycarbonate
Lens material	Polycarbonate
Maximum tilt angle	85°
Finishing	Matte Black

Width	155 mm
Length	162 mm
Height/depth	70 mm
Outer diameter	70 mm

Application temperature	25°C
Storage environment	-25|50°C
Operating temperature	-10|35°C
